Product Summary

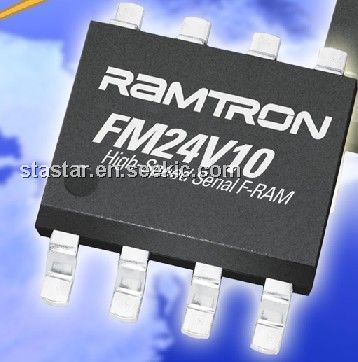

1Mb Serial 3V F-RAM Memory
Parametrics
1M bit Ferroelectric Nonvolatile RAM
? Organized as 131,072 x 8 bits
? High Endurance 100 Trillion (1014) Read/Writes
? 10 year Data Retention
? NoDelay? Writes
? Advanced High-Reliability Ferroelectric Process
Fast Two-wire Serial Interface
? Up to 3.4 MHz maximum bus frequency
? Direct hardware replacement for EEPROM
? Supports legacy timing for 100 kHz & 400 kHz
Device ID and Serial Number
? Device ID reads out Manufacturer ID & Part ID
? Unique Serial Number (FM24VN10)
Low Voltage, Low Power Operation
? Low Voltage Operation 2.0V – 3.6V
? Active Current < 150 ?A (typ. @ 100KHz)
? 90 ?A Standby Current (typ.)
? 5 ?A Sleep Mode Current (typ.)
Industry Standard Configuration
? Industrial Temperature -40? C to +85? C
? 8-pin “Green”/RoHS SOIC Package
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FM24V10-GTR |
Ramtron |
F-RAM 1M (128Kx8) 2.0-3.6V F-RAM |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
FM240 |
Rectron |
Diodes (General Purpose, Power, Switching) GP Si Rectifier SMB,2A,40V |
Data Sheet |
|
|
||||||||||||
|
FM240A |
Rectron |
Diodes (General Purpose, Power, Switching) GP Si Rectifier SMB,2A,40V |
Data Sheet |
|
|
||||||||||||
|
FM240A-W |
Rectron |
Schottky (Diodes & Rectifiers) 2A 40V Schottky |
Data Sheet |
|
|
||||||||||||
|
FM240L |
Rectron |
Schottky (Diodes & Rectifiers) SM Schot Bar Rect SMB,2A,40V |
Data Sheet |
|
|
||||||||||||
|
FM240-L |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
FM240-LN |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
