Product Summary
New and original
Parametrics

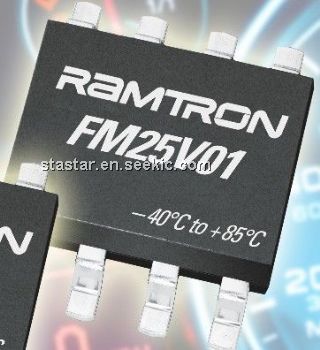

128K bit Ferroelectric Nonvolatile RAM
? Organized as 16,384 x 8 bits
? High Endurance 100 Trillion (1014) Read/Writes
? 10 Year Data Retention
? NoDelay? Writes
? Advanced High-Reliability Ferroelectric Process
Very Fast Serial Peripheral Interface - SPI
? Up to 40 MHz Frequency
? Direct Hardware Replacement for Serial Flash
? SPI Mode 0 & 3 (CPOL, CPHA=0,0 & 1,1)
Write Protection Scheme
? Hardware Protection
? Software Protection
Device ID
? Device ID reads out Manufacturer ID & Part ID
Low Voltage, Low Power
? Low Voltage Operation 2.0V – 3.6V
? Active Current 120 ?A (typ. @ 1MHz)
? Standby Current 90 ?A (typ.)
? Sleep Mode Current 5 ?A (typ.)
Industry Standard Configurations
? Industrial Temperature -40?C to +85?C
? 8-pin “Green”/RoHS SOIC Package
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FM25V01-G |
Ramtron |
F-RAM SPI FRAM 128k 2.0V |
Data Sheet |
|
|
||||||||||||
|
FM25V01-GTR |
Ramtron |
F-RAM SPI FRAM 128k 2.0V |
Data Sheet |
|
|
||||||||||||
