Product Summary

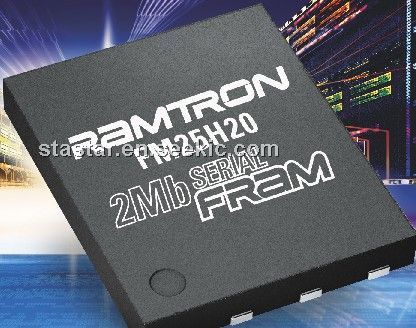

2Mb Serial 3V F-RAM Memory
Parametrics
2M bit Ferroelectric Nonvolatile RAM
? Organized as 256K x 8 bits
? High Endurance 100 Trillion (1014) Read/Writes
? 10 Year Data Retention
? NoDelay? Writes
? Advanced High-Reliability Ferroelectric Process
Very Fast Serial Peripheral Interface - SPI
? Up to 40 MHz Frequency
? Direct Hardware Replacement for Serial Flash
? SPI Mode 0 & 3 (CPOL, CPHA=0,0 & 1,1)
Write Protection Scheme
? Hardware Protection
? Software Protection
Low Power Consumption
? Low Voltage Operation 2.7V – 3.6V
? Sleep Mode Current 3 μA (typ.)
Industry Standard Configurations
? Industrial Temperature -40°C to +85°C
? 8-pin “Green”/RoHS TDFN Package
? 8- pin “Green”/RoHS EIAJ SOIC Package
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FM25H20-DG |
Ramtron |
F-RAM 2Mb (256kX8) 3V F-RAM |
Data Sheet |
|
|
||||||||||||
|
FM25H20-DGTR |
Ramtron |
F-RAM 2Mb (256kX8) 3V F-RAM |
Data Sheet |
|
|
||||||||||||
